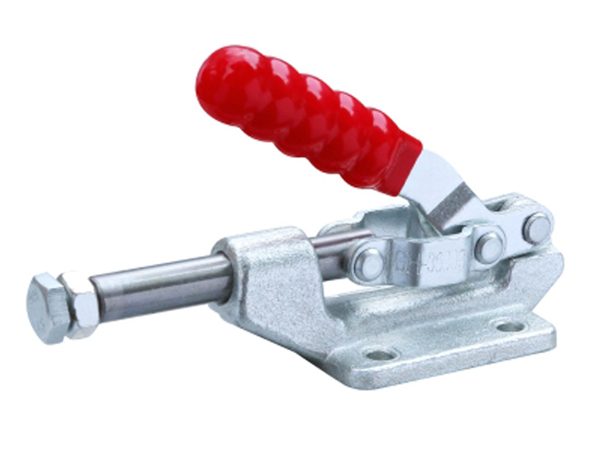

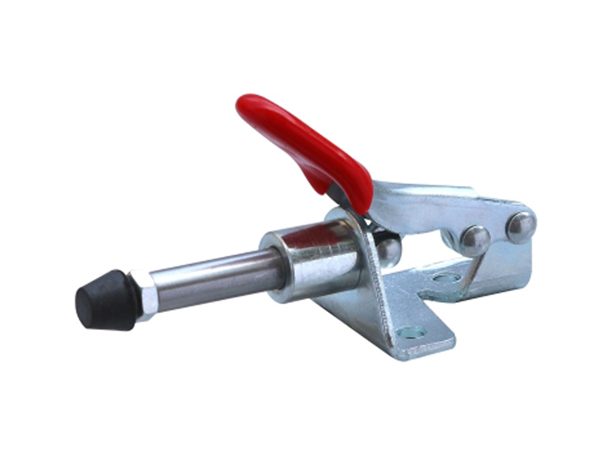

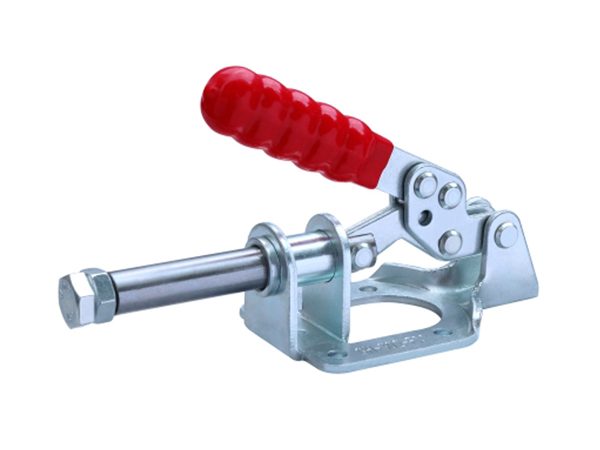

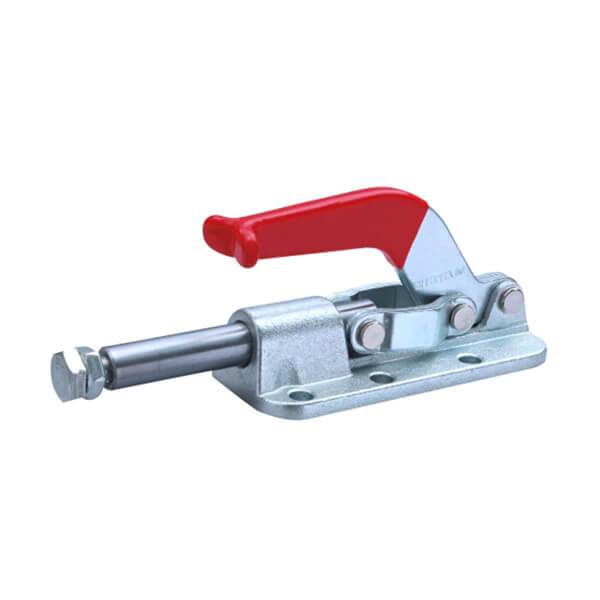

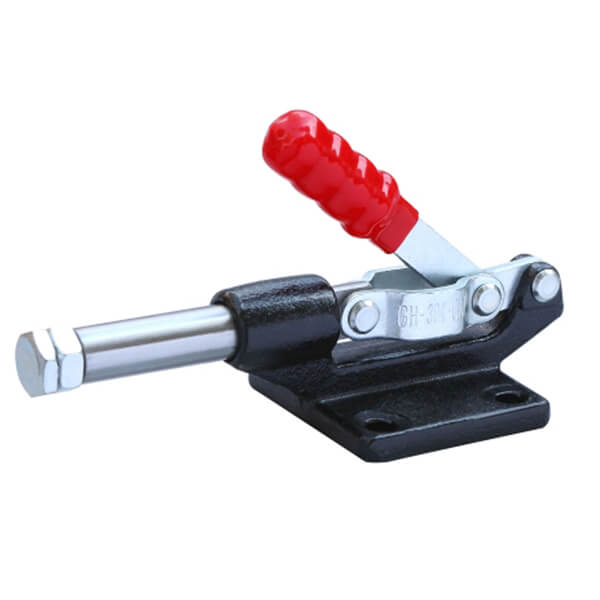

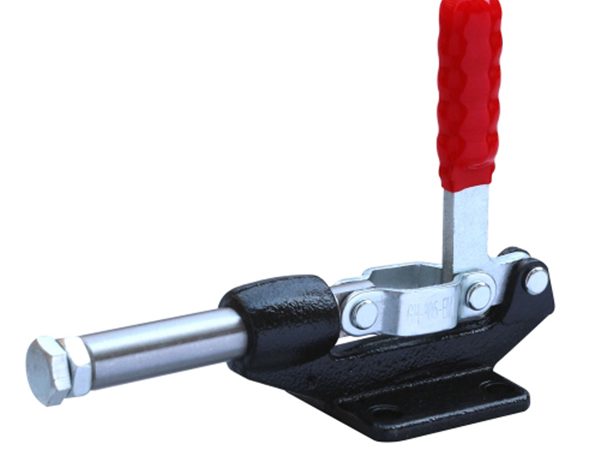

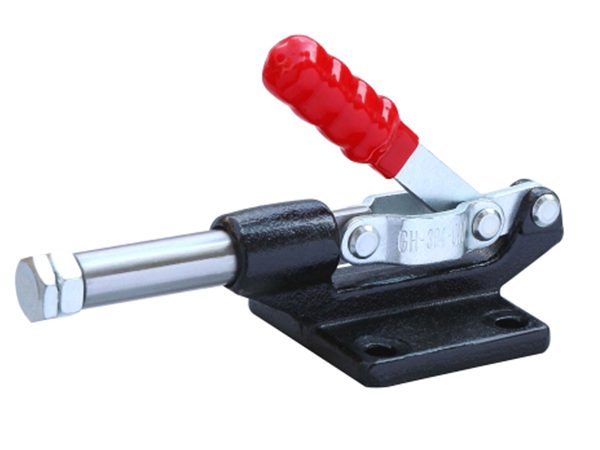

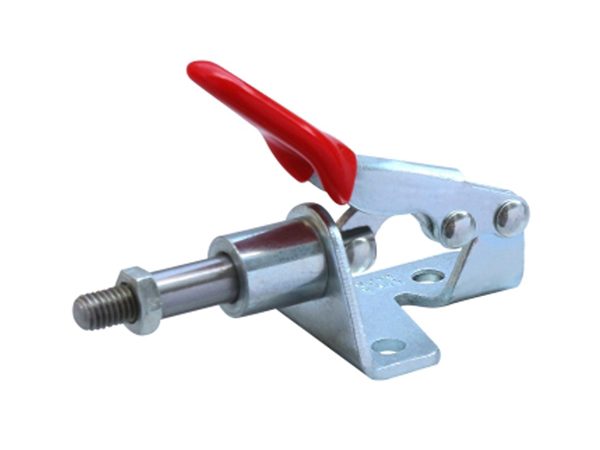

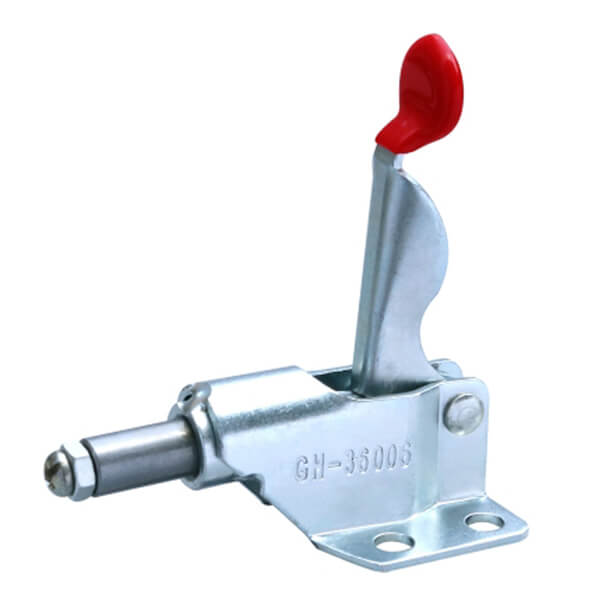

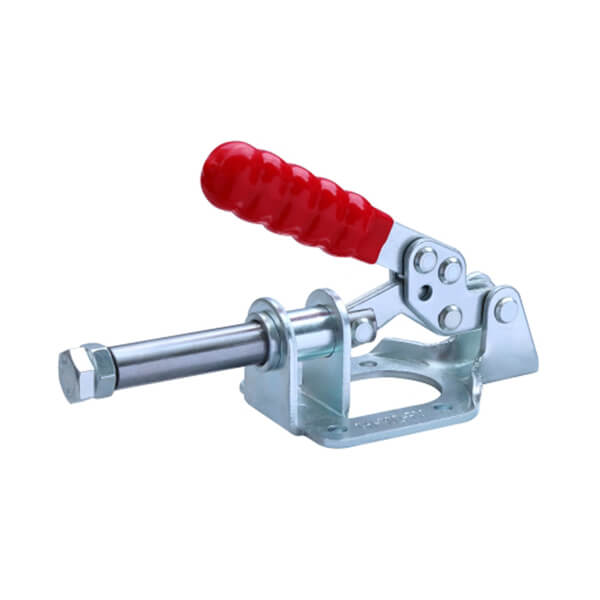

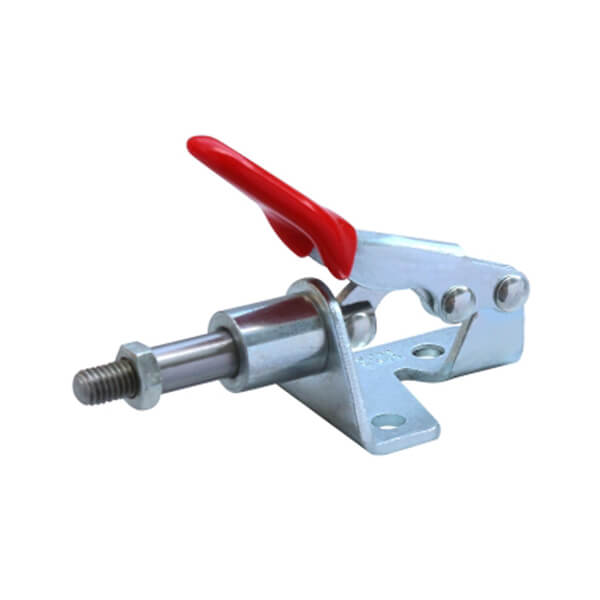

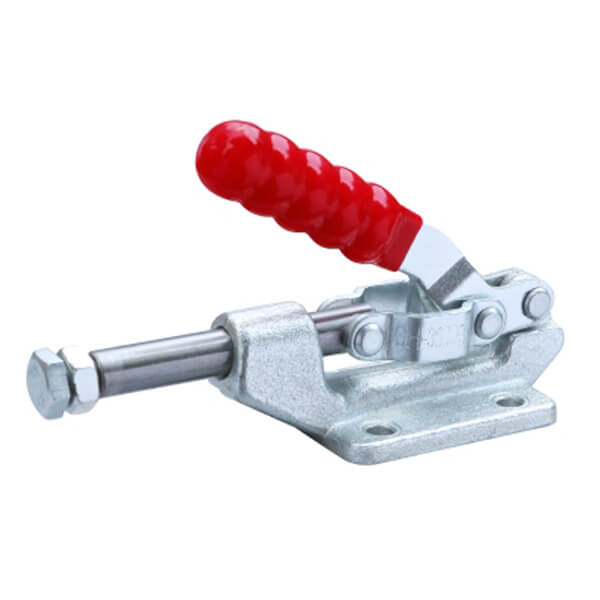

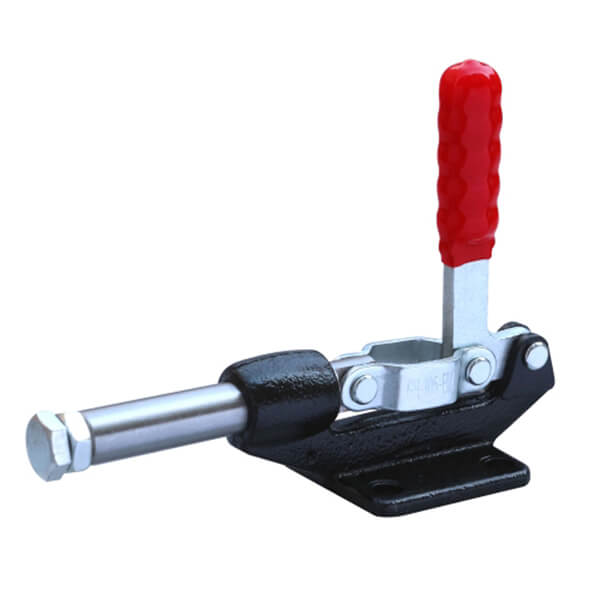

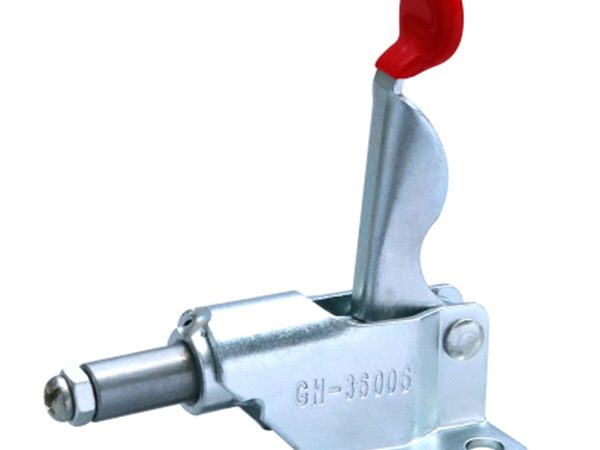

Push Pull Toggle Clamp

1. What is a push-pull toggle clamp and how does it work?

A push-pull toggle clamp is a mechanical clamping device that secures workpieces using a linear push or pull motion of the plunger rod. It operates on an over-center locking principle, where the handle moves past a center point to lock the clamp in place, providing a strong holding force without requiring continuous user pressure. The clamp is released by reversing the handle motion.

2. What are the most common applications for push-pull toggle clamps?

Push-pull toggle clamps are widely used in:

• Welding and metal fabrication fixtures
• Woodworking jigs
• Assembly line workstations
• CNC machining setups
• Drill press operations
• Mold and die clamping
• Inspection fixtures

They are especially useful when straight-line clamping force is needed in tight spaces or where horizontal/vertical hold-down clamps cannot fit.

3. How do I choose the right size push-pull toggle clamp?

When selecting a push-pull toggle clamp, consider these factors:

• Holding capacity – Match the clamp’s rated force (typically 100–7,500 lbs) to your application
• Plunger stroke length – Ensure adequate travel for your workpiece

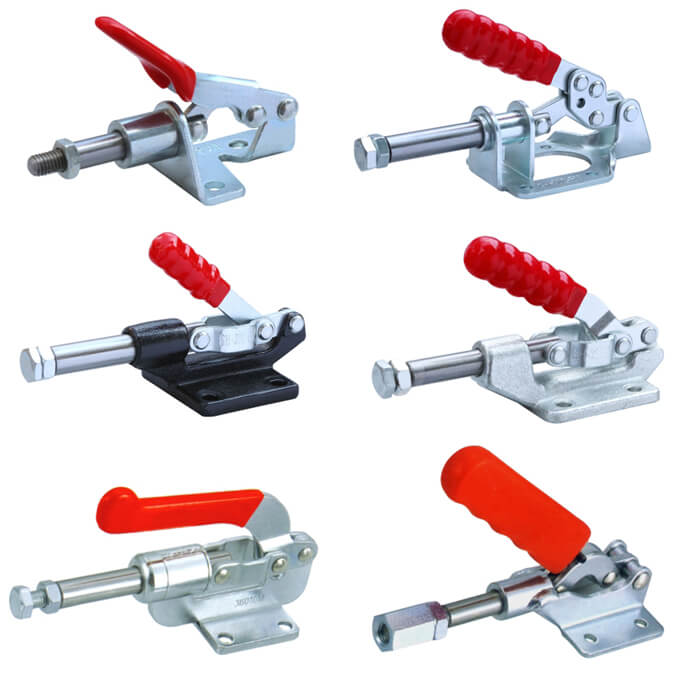

• Mounting style – Flange base, threaded body, or straight-line bracket
• Plunger diameter and thread size – For attaching custom tooling or spindle assemblies

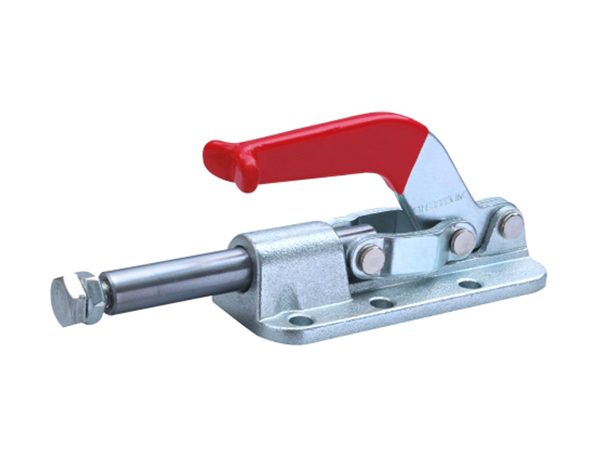

• Working environment – Standard steel, stainless steel, or coated finishes for corrosive conditions

4. What’s the difference between push-pull, vertical, and horizontal toggle clamps?

• Push-pull clamps apply force in a straight line (linear motion) along the plunger axis
• Vertical hold-down clamps apply downward force using a swing arm with the handle in a vertical position when locked
• Horizontal hold-down clamps also apply downward force but with the handle in a horizontal locked position for low-profile applications

Push-pull clamps are unique in that they can both push and pull workpieces, making them versatile for fixtures requiring linear engagement.

5. How do I install and adjust a push-pull toggle clamp?

1. Mount the clamp securely to your fixture using the flange holes or threaded body, ensuring proper alignment with the workpiece
2. Adjust the plunger by threading the spindle assembly or contact bolt to the correct length
3. Set the locking position by cycling the handle and confirming it passes the over-center point with firm engagement
4. Test the clamping force with the actual workpiece — too loose won’t hold, too tight may bend the linkage or strain the workpiece
5. Lubricate pivot points periodically for smooth operation

6. What maintenance do push-pull toggle clamps require?

Push-pull toggle clamps are low-maintenance but benefit from:

• Regular lubrication of pivot pins and linkages with light machine oil
• Periodic inspection for worn or bent components, especially the plunger and linkage arms
• Tightening loose fasteners on the mounting base and handle

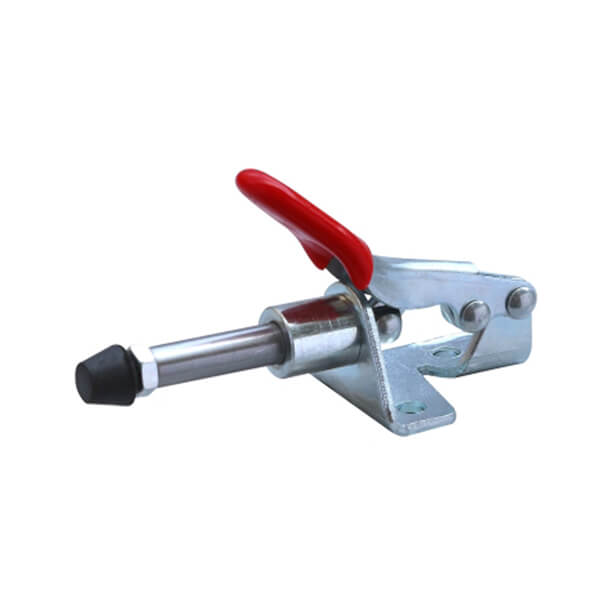

• Replacing rubber tips or contact pads when worn
• Cleaning to remove debris, weld spatter, or chips that could obstruct movement

With proper care, quality toggle clamps can last for thousands of cycles in industrial use.
