Vertical Toggle Clamp

1. What is a vertical toggle clamp and how does it work?

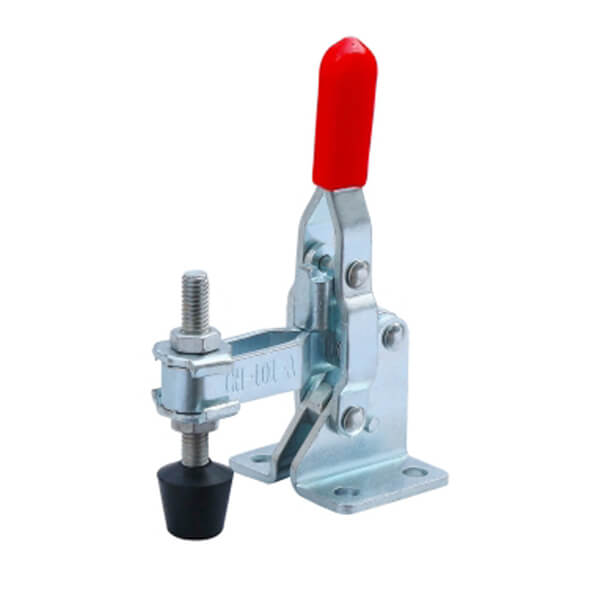

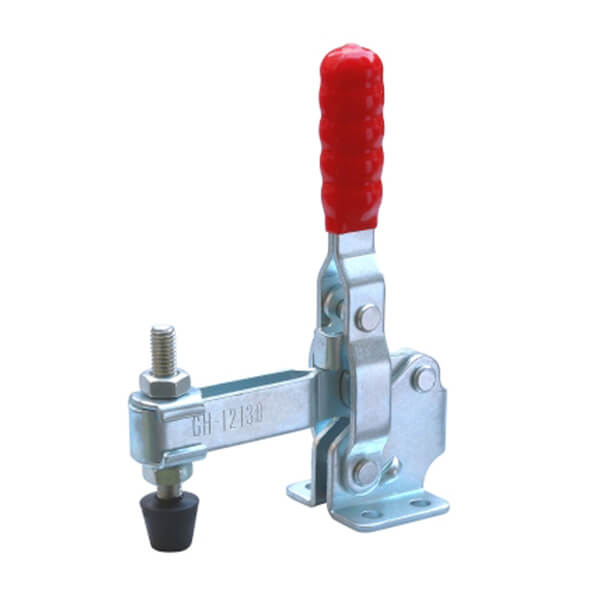

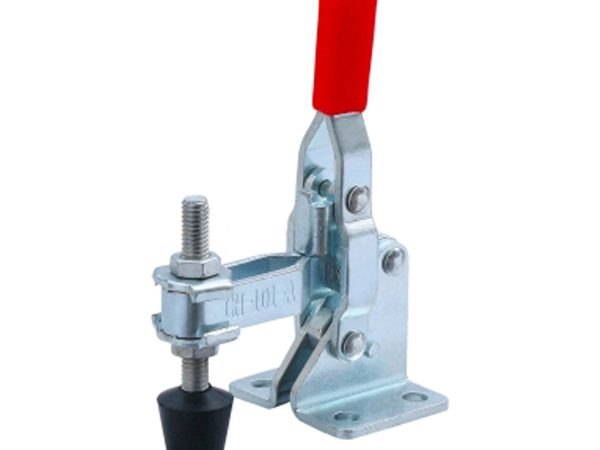

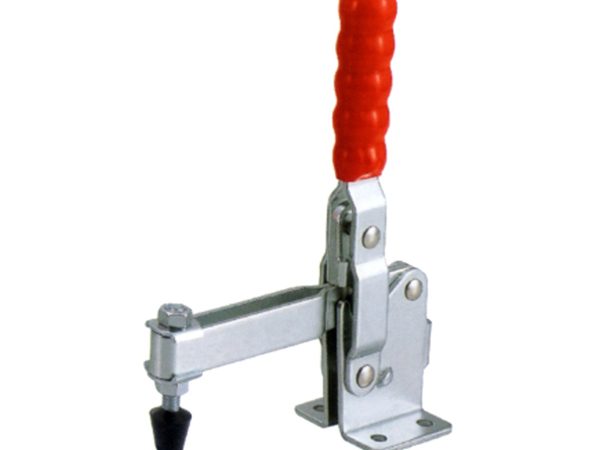

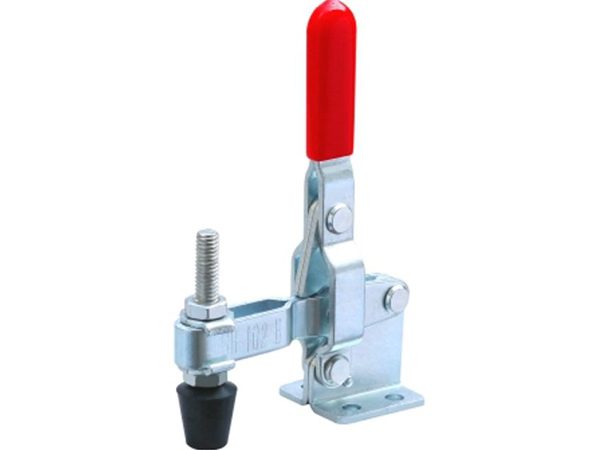

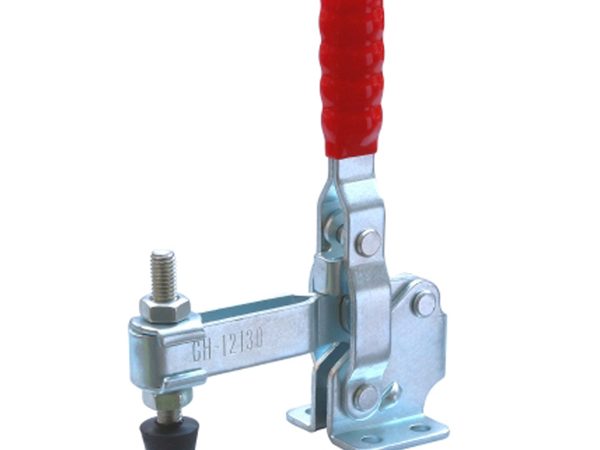

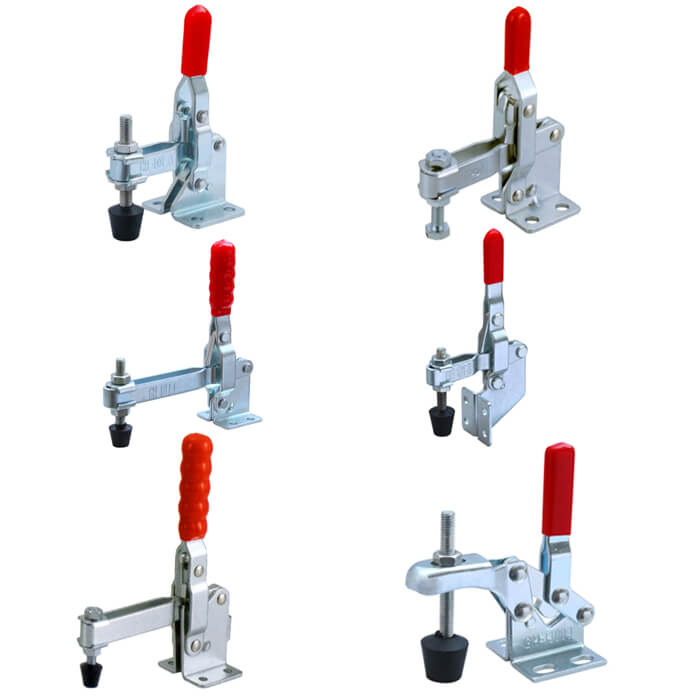

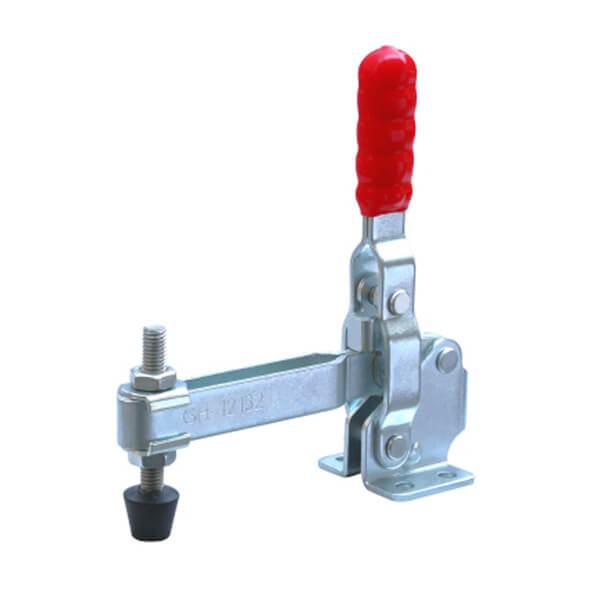

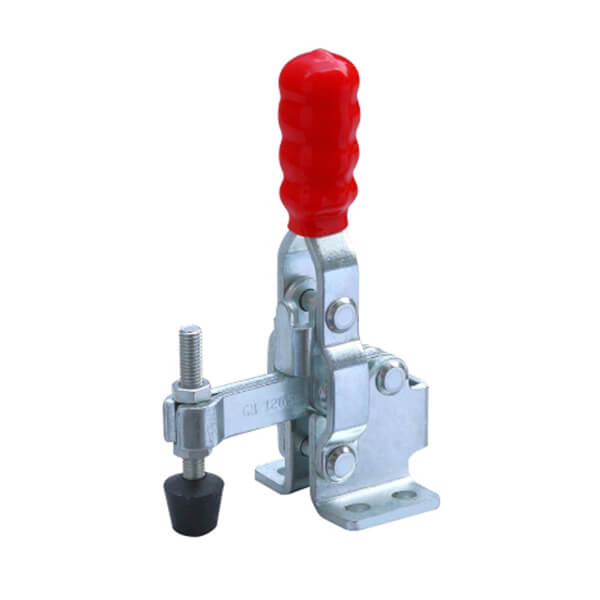

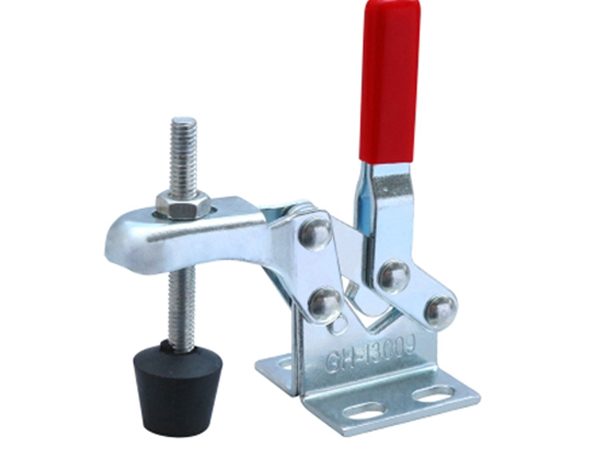

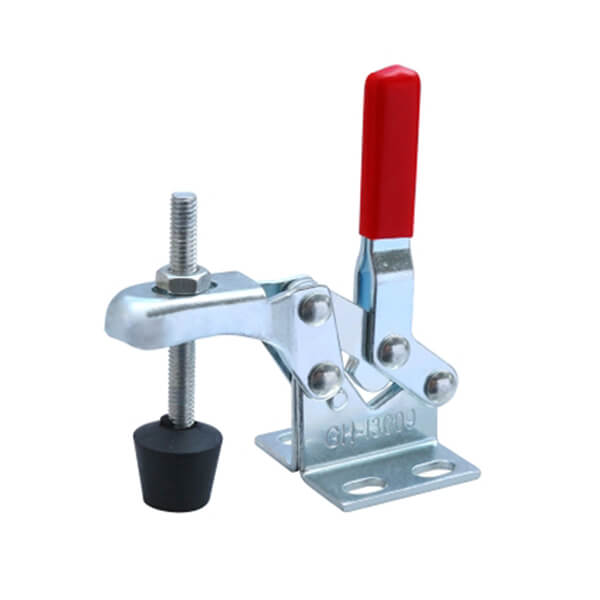

A vertical toggle clamp is a manually operated holding device that uses a linkage system to apply secure, repeatable clamping force in a vertical direction. When the handle is pushed down or pulled up, the over-center linkage locks the clamping arm in place, holding the workpiece firmly until the handle is released. This locking mechanism ensures the clamp stays engaged even under vibration or load.

2. What are the most common applications for vertical toggle clamps?

Vertical toggle clamps are widely used in:

• Welding and fabrication fixtures
• CNC machining and drilling jigs
• Woodworking workstations
• Assembly line operations
• Inspection and testing fixtures
• Checking gauges and templates

Their compact handle profile (which folds down vertically when closed) makes them ideal for applications with overhead clearance restrictions.

3. What’s the difference between vertical and horizontal toggle clamps?

The primary difference is the handle position when locked. Vertical toggle clamps have the handle pointing straight up or down in the closed position, making them ideal for tight side clearances. Horizontal toggle clamps have the handle lying flat or parallel to the base when clamped, which is preferable when overhead space is limited but side space is available. Vertical clamps generally have a smaller footprint but require more vertical clearance.

4. How do I choose the right size vertical toggle clamp for my application?

Consider these factors when selecting a vertical toggle clamp:

• Holding capacity: Match or exceed the clamping force needed (typically ranging from 100 lbs to 1,000+ lbs)
• Bar opening height: Ensure adequate clearance for your workpiece
• Handle clearance: Verify available vertical space when the clamp is open

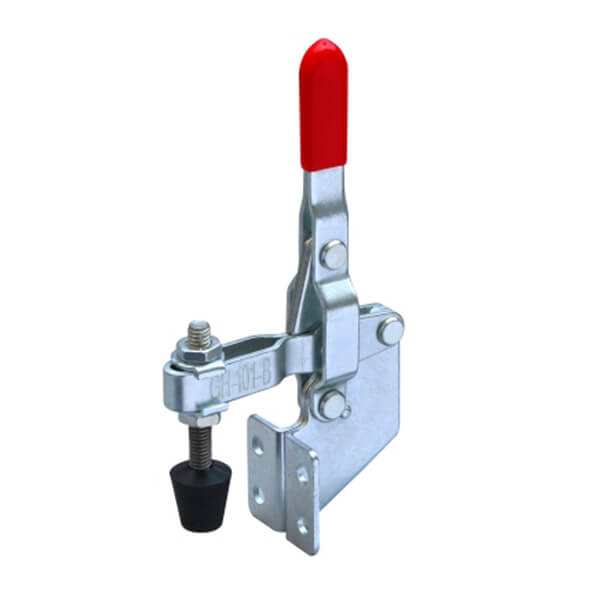

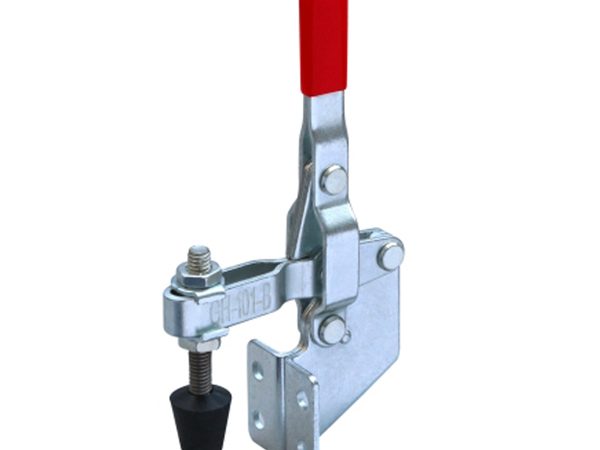

• Mounting style: Choose between flanged base, straight base, or solid arm options

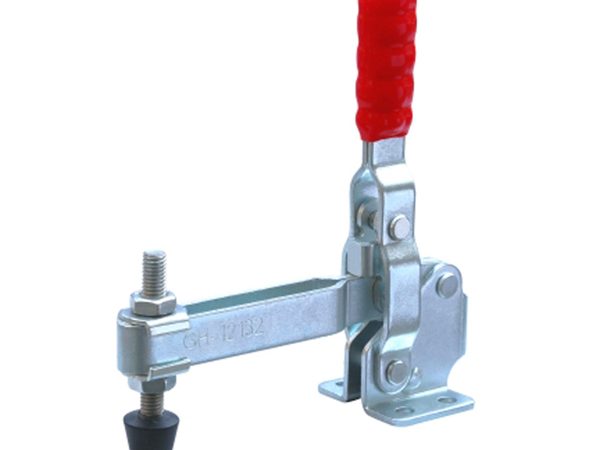

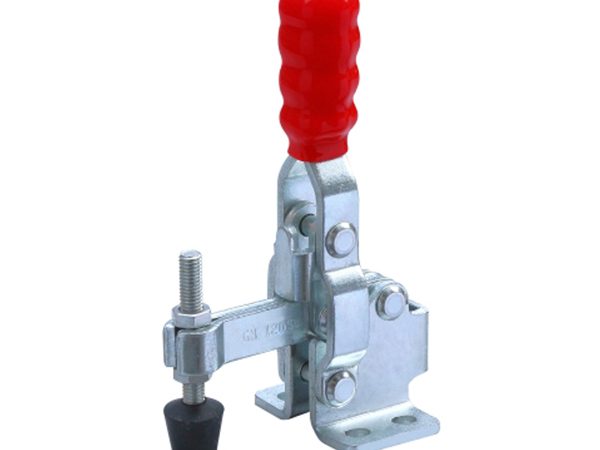

• Material: Standard zinc-plated steel for general use, or stainless steel for corrosive environments

5. How do I properly maintain a vertical toggle clamp?

To extend the service life of your toggle clamp:

• Lubricate pivot points and linkages periodically with light machine oil
• Inspect for bent linkages, worn rivets, or damaged handles before each use
• Avoid exceeding the rated clamping capacity
• Replace rubber spindle tips when worn to maintain grip
• Keep the clamp clean from chips, weld spatter, and debris
• Tighten mounting bolts regularly to prevent loosening from vibration

6. Can vertical toggle clamps be adjusted for different workpiece heights?

Yes, most vertical toggle clamps feature an adjustable spindle (also called a clamping bolt) that threads through the clamping arm. By turning the spindle in or out, you can accommodate workpieces of varying thicknesses while maintaining proper clamping pressure. For larger height variations, you may need to select a clamp with a different bar opening or use shims/risers in your fixture design. Always re-test the clamping force after making adjustments to ensure secure holding.
